Features:
- Flexible with good moisture, chemical and abrasion resistance
- Provides accurate temperature measurement with high temperature stability
- According to AMS2750E load thermocouple made from calibrated spool thermocouple wire up to 2000 feet do not need to be calibrated individually
- According to AMS2750E on single use load thermocouple SAT test is not required (special procedure on instrument calibration is to be implemented)
- Very useful as TUS test thermocouple
- TE Wire & Cable certificate of calibration is issued from an ISO17025 lab

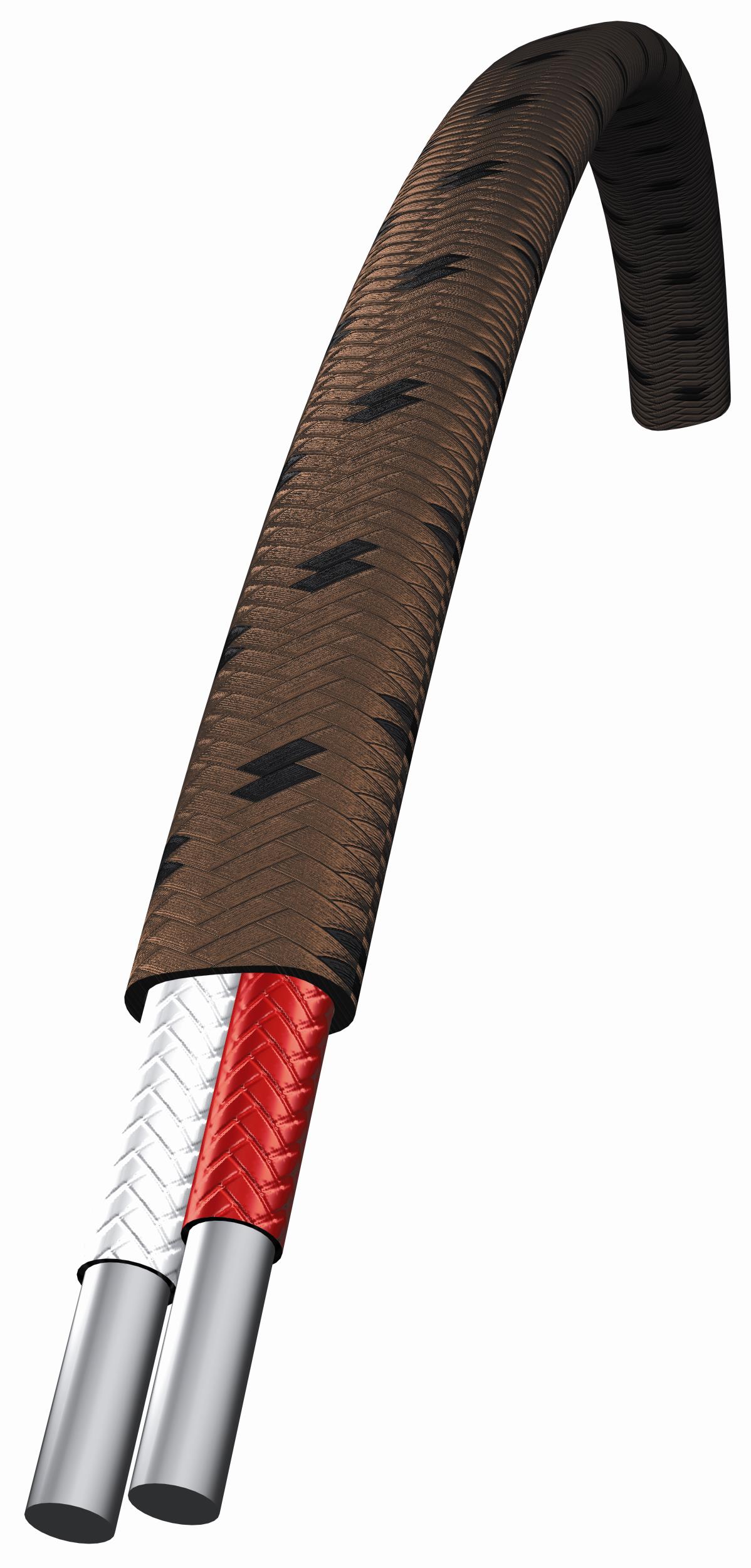

G-Glass Fiberglass. Individual conductors are insulated with general purpose fiberglass and with an overall fiberglass jacket. Designed for continuous use in temperatures rating up to 950 Degrees F (510 Degrees C). Fiberglass is flexible and can be ordered twisted with reduced itch TuffbondTM construction. G-Glass can be used in industry applications such as heat treatment, metal forgings, metal qualifications, aluminum.
Application:
- Heat Treatment- Plastic Processing Equipment- Steel and Aluminum Industry- Testing- Furnace Surveys
- Temperature Sensors
Specifications:
Conductors: Solid or stranded thermocouple wire per ASTM E230 & ANSI MC96.1Insulation: Braided fiberglass with high temperature impregnation* (24 to 30 AWG Served Glass)Construction: Parallel conductorsJacket: Braided fiberglass with high temperature impregnation*Operating Temperature: +950F (+510C) continuous +1200F (+650C) single exposureLimits of Error: Conforms to ASTM E230, IEC 584 and ANSI MC 96.1Color Code: Supplied white without saturants and with red tracer in negative leg
*Impregnation maintained to +400F (+200C)
