Controller

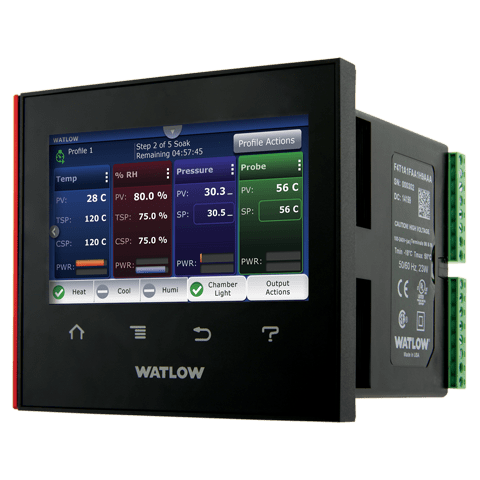

F4T® Temperature And Process Controller

Specifications

Description
Information
TRU-TUNE®+ Adaptive Control
Yes
Agency Approvals
UL/EN 61010 Listed, UL508, CSA, FM (limit), RoHS by design, China RoHS Level 2, W.E.E.E., CE
Alarms
Up to 14
Communication Protocols
Standard BusModbus® TCPModbus® RTUSCPIUSB 2
Control/Limit Loops
4/4
Description
1-4 PID loops with profiles & data logging options
Max Monitor Channels
24
Max Output
10A SSR
Mounting
Front panel or flush mount
Profiling
Yes
Supported Controllers
F4T, Flex Modules (FM), Composer PC software
Remote Limit Reset
1
Display Height
4.3" PCAP color graphical touch
Now featuring e-mail and text alerts. Notify users of an event that has occurred such as a specific profile or step within a profile, alarm condition, limit condition or analog input error. The F4T temperature & process controller from Watlow offers a wide range of field removable I/O modules for maximum design flexibility. Configurations can be custom tailored to meet the scaling needs of a tremendous range of equipment and applications while providing exactly the hardware types required for compatibility. The F4T controller also features a 4.3 inch, color, graphical touch panel. Combining power, flexibility and functionality, this new controller offers unmatched versatility, and its best-in-class ease of use could very well make user manuals a thing of the past.

Specification Sheet

  • F4T Specification Sheet

User Manual

  • F4T User Guide: Installation & Troubleshooting
  • F4T Controller Setup and Operation User's Guide
  • F4T Feature Add - Instructions
